The Machine I've ever dream to built

As Multimedia Designer, I like to create interactive installations by using sensors, lighting systems, motors, video projections, etc… I use many items to make IoT projects but one was missing in my toolsbox; an affordable multitasking box that’s able to connect and communicate easily with all my electronic items. In 2016, I couldn’t find any relevant device on the market therefore I decided to make it. After two years of research and development, my dream came true: Welcome LAMACKINA.

Pratical Multifunctional Box

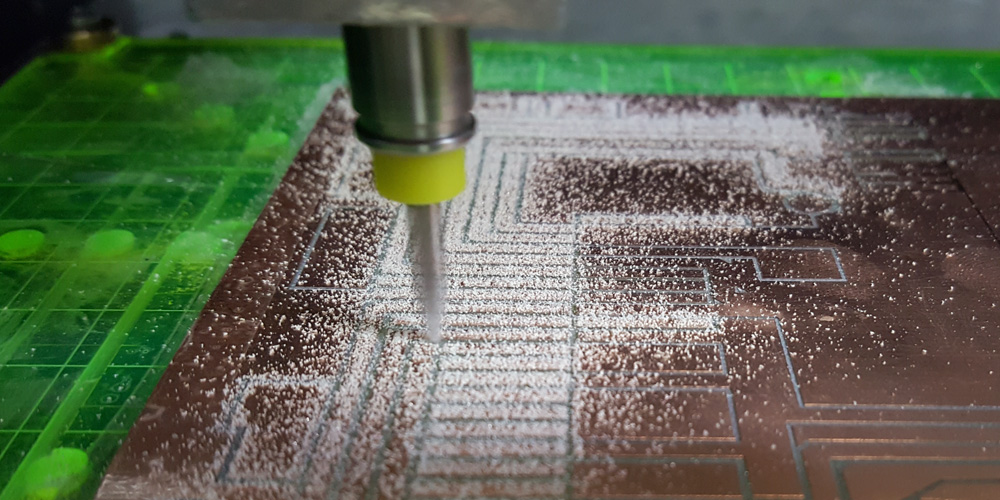

I wanted a versatile, efficient and attractive machine. Therefore, I started to develop a specific hardware and, step by step, I built all the design.  To achieve an accurate quality, I have used CNC, laser cutter and 3D printer. Every details have been thought carefully and every part fits exactly at the right place like a puzzle. All the outputs, inputs and cooling system can be managed easily by coding in Python or others languages thank to RaspberryPi. Moreover, LAMACKINA can be controlled by mobile devices using third party applications.

powerful outputs 12 volts up to 8 amperes*

customizable inputs / outputs with buffers

analogue inputs added with 5 volts power supply

handy fuses to protect YOUR PROJECT

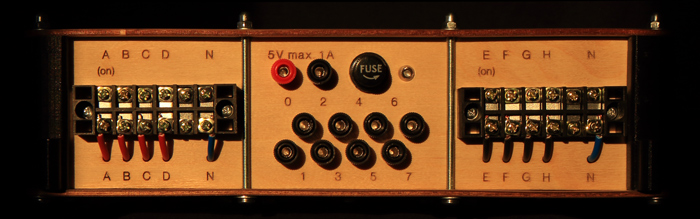

Left & Right: 2 x 4 powerful low voltage outputs: A,B,C,D & E,F,G,H + neutral (N)** / Center: 8 analogue inputs named from 0 until 7 + 5 volt supply protected by 1 fuse.

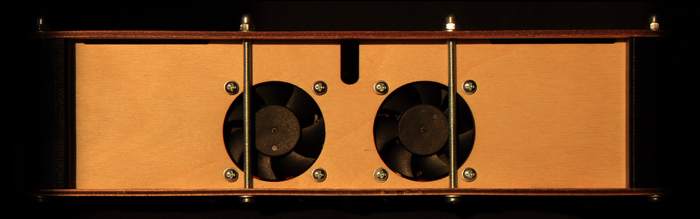

Programmable cooling system.

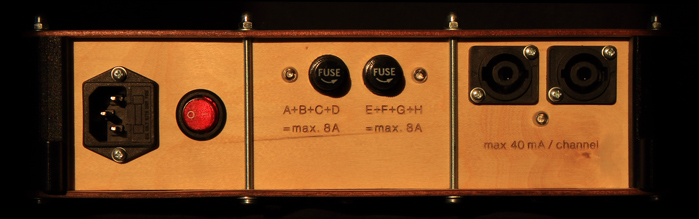

Left: power inputs 230 V protected by 1 fuse/ Center: 2 fuses to protect the low voltage outputs / Right: 2 x 4 inputs or outputs / secure connectors.

Specifications

*Programmable Outputs / Inputs:

 > 12 V / 2 A / 4 x 2 channels up to 8 A / switched by relays, optically isolated (24 V power supply can also be feasible instead of 12 V);

 > 8 analogue inputs up to 3,3 V / 12 bits;

 > 2 x 4 selectable inputs or outputs (Inputs connected directly to GPIO / Outputs TTL & CMOS compatible / up to 40 mA @ duty 100% / darlington transistors);

 > 1 x 5 V / max. 1 A;

 Dimensions: 29 x 29 x 9 cm / Weight: 2,9 Kg  / Material: wood, ABS;

(**note: there are 2 separate neutrals, one for CPU and one for the low voltage outputs).
